Core Features & Technology

• Cummins QSB6.7 Engine: A Tier 4 Final power plant delivering 163.6 hp. This engine is known for its “no-nonsense” reliability and is paired with a high-efficiency common rail fuel system that improves combustion and reduces particulate matter without sacrificing torque.

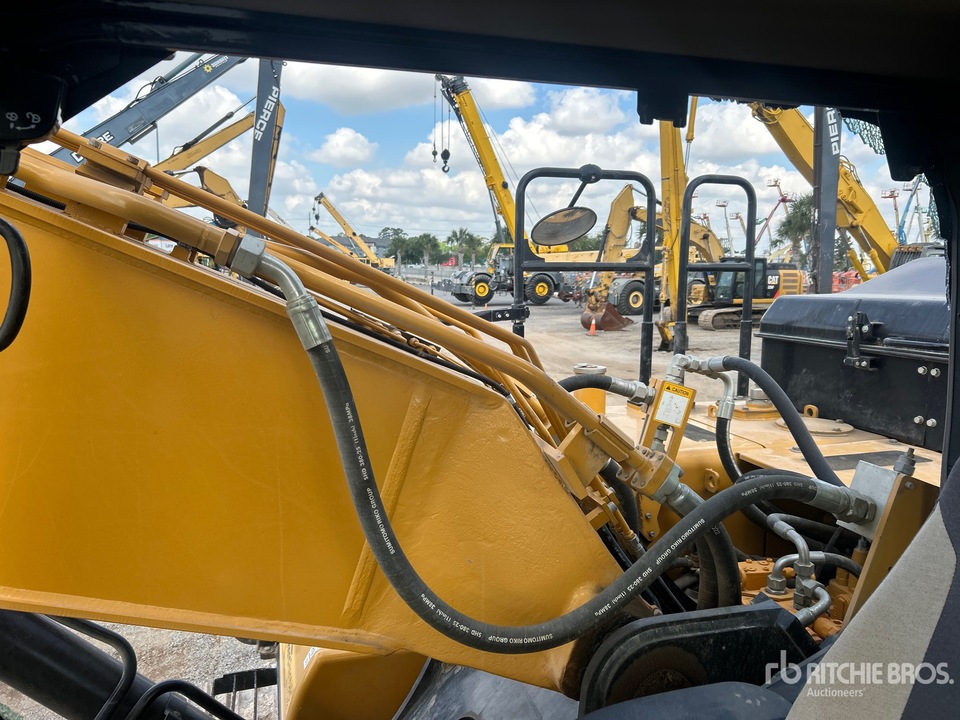

• Positive Flow Hydraulic System: Utilizing high-end Kawasaki variable displacement pumps, the system matches pump output directly to operator joystick movement. This “positive flow” design reduces hydraulic friction losses, leading to smoother multi-functioning and approximately 10% better fuel economy than older open-center systems.

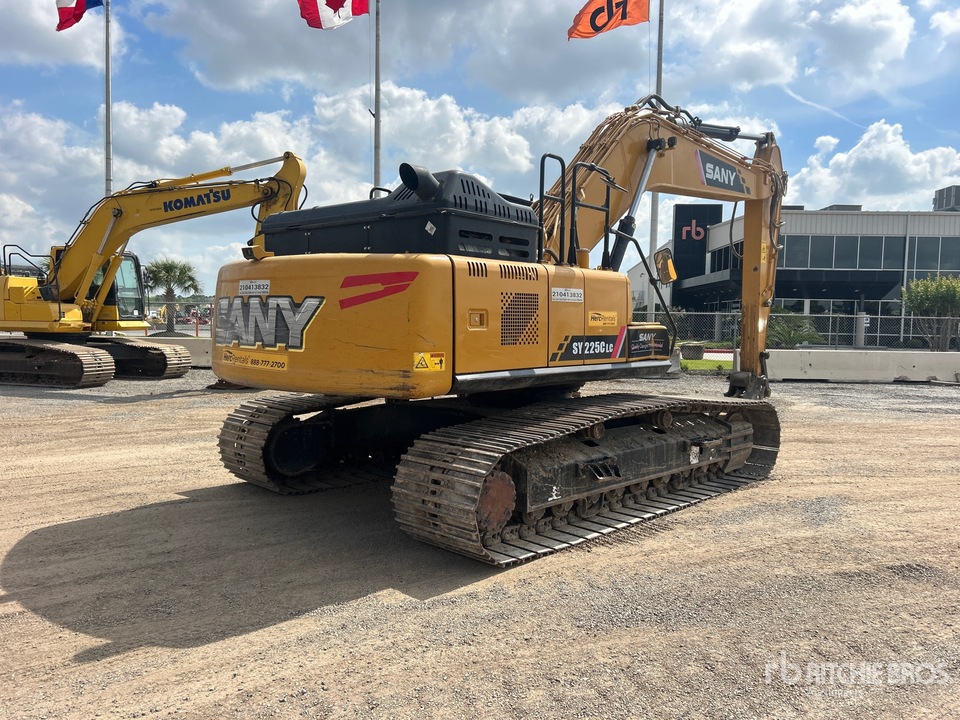

• Extended “LC” Undercarriage: The “LC” (Long Crawler) designation provides an extended track-to-surface length of 12′ 7″. This longer footprint, combined with an additional counterweight as standard, provides the stability needed for heavy lifting and running high-flow attachments like forestry mulchers or large breakers.

• DOMCS Intelligent Control: Sany’s Dynamic Optimization Machine Control System (DOMCS) creates a real-time link between the engine and the hydraulic pumps. It automatically adjusts power distribution based on the load, ensuring the engine doesn’t “bog down” during heavy digging in “H” (Heavy) mode.

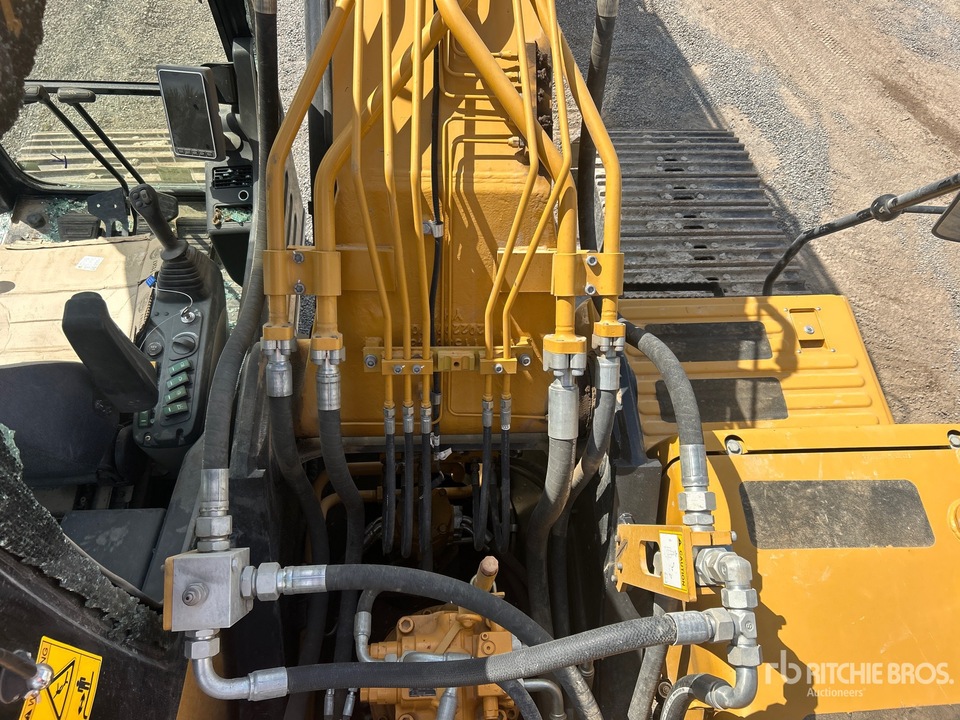

• Factory-Standard Auxiliary Plumbing: Unlike many competitors where secondary lines are an upgrade, the 2023 SY225C comes “fully loaded” with one-way/two-way primary auxiliary lines, rotation piping, and a dedicated case drain, making it ready for complex attachments immediately.

Operator Comfort & Maintenance

• Redesigned “Luxury” Cab: The 2023 model features a pressurized cab with a significantly larger glass area for improved 360-degree visibility. It includes an industry-standard air-ride heated seat and a high-output HVAC system designed to handle extreme ambient temperatures.

• High-Intensity LED Package: To support 24/7 operations, the machine comes standard with a full LED work light package on the cab, boom, and side, providing much higher lumens and lower power draw than traditional halogen lights.

• 7-Inch Touchscreen Monitor: A high-resolution display allows operators to fine-tune hydraulic flow and pressure for up to 10 different attachments. It also hosts the standard high-definition rearview camera and real-time fuel consumption tracking.

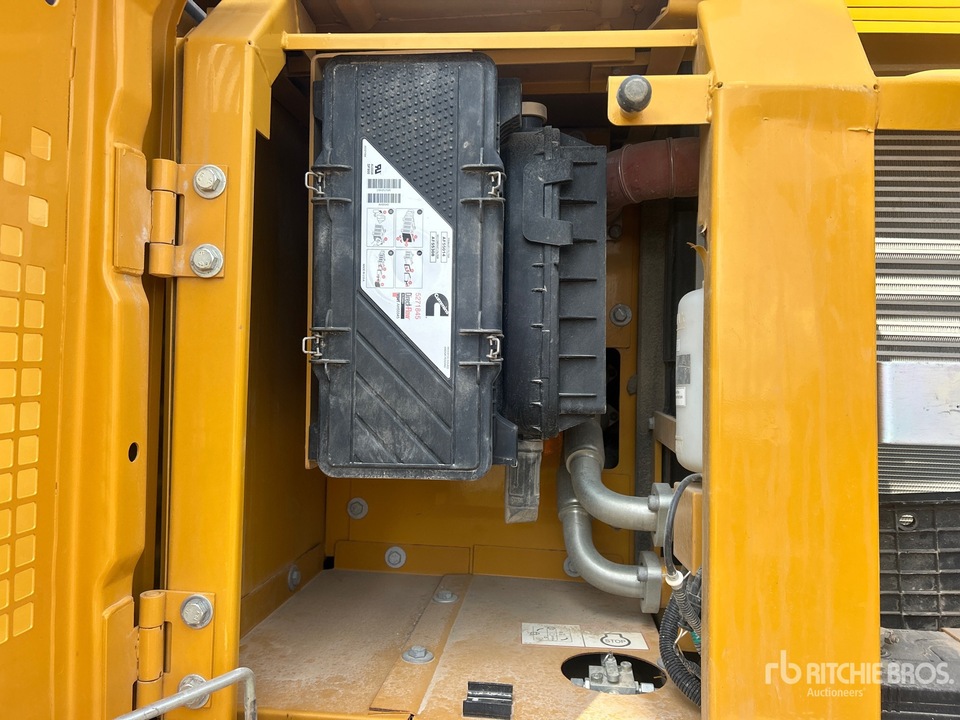

• Ground-Level Serviceability: Sany has simplified maintenance by grouping the fuel pre-filter, water separator, engine oil filter, and pilot filter behind a single, wide-access side door. The air cleaner is also accessible from ground level, encouraging more frequent cleaning in dusty conditions.

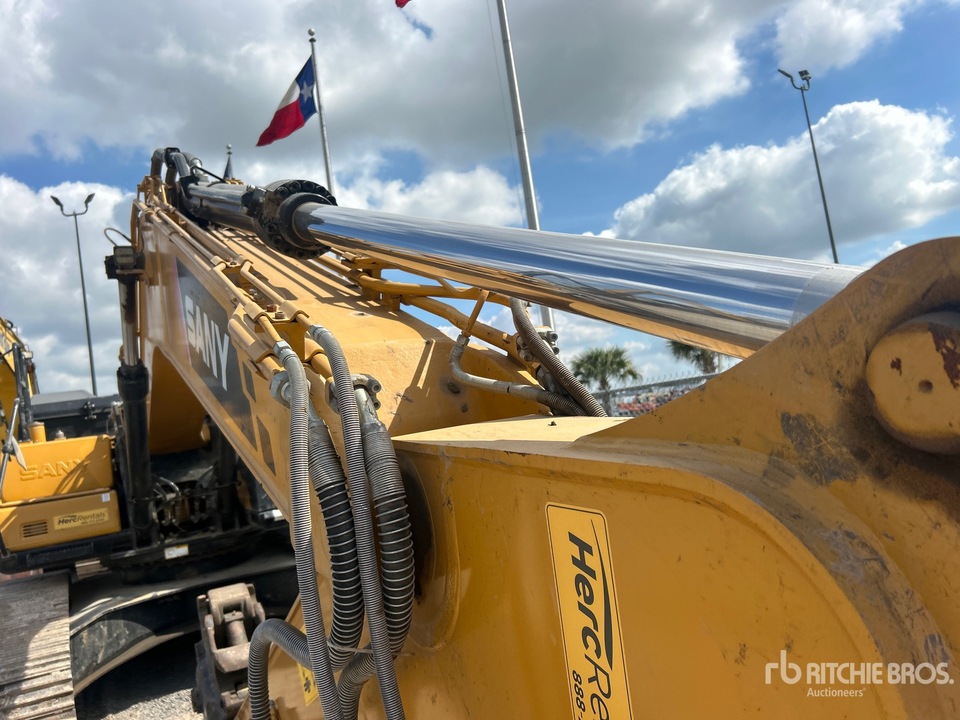

• Reinforced Structural Components: The boom and arm use large-cross-section structures and high-strength steel plates. Internal baffle plates are used to reduce stress concentration, ensuring the “business end” of the machine can handle the 28,551 lbf of breakout force over a long service life.
